Laboratory bench
ZBENCH 120QTOF
Description

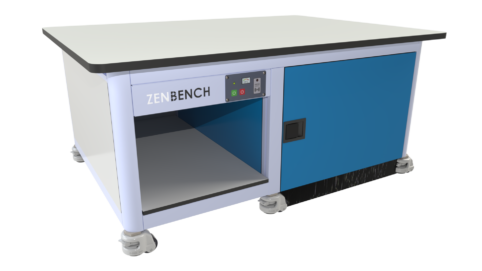

The ZBENCH 120QTOF laboratory bench by ZenBench is engineered to deliver maximum structural stability, advanced noise reduction, and heavy-duty protection for highly demanding analytical testing environments. Built on a rock-solid, high-strength structural aluminum profile framework and a premium work surface with ultra-high chemical resistance, it supports a static load capacity of up to 500 kg .
The primary competitive advantage of this model lies in its specialized low-profile, space-saving design . Its compact framework stands at a reduced height of 55 cm , engineered exclusively to facilitate the safe installation of exceptionally tall QTOF and QTOF-TOF systems in laboratories with low ceiling heights . This low-clearance configuration lowers the instrument’s center of gravity and ensures a perfectly ergonomic, accessible, and safe positioning for technicians during analytical operation.
This model optimizes workflow efficiency and workspace organization by allowing the peripheral integration of a drawer unit, an ergonomic external tower holder (CPU), and an upper articulated monitor arm (TFT). The lower layout features an intelligent distribution: the left compartment remains completely open and diaphonous, providing a dedicated space for general laboratory storage and safe chemical waste carboy management.
Conversely, the right compartment functions as the primary integrated acoustic mitigation enclosure , engineered exclusively to isolate one analytical vacuum pump resting directly at floor level . Lined with 50 mm thick premium high-density acoustic insulation , it suppresses over 85% of perceived continuous ambient noise , substantially improving workplace comfort and operational efficiency within the laboratory. This technical housing comes standard with a front-mounted digital climate control panel and an automated forced ventilation system powered by four horizontal ultra-quiet exhaust fans to protect and maintain optimal instrument performance.
Outfitted with six heavy-duty leveling casters featuring integrated retractable stabilizing feet , each individually adjustable, the bench combines agile, effortless mobility during rear-access maintenance with a rigid, durable, and perfectly leveled floor anchoring during technical operation.
Features
Technical specifications
- Mobile, low-profile soundproof laboratory workstation custom-engineered for GC/LC-MS and QTOF configurations, featuring a high-strength aluminum profile frame.
- 12 mm structural HPL cladding and 20 mm thick Fundermax Resistance benchtop, both providing maximum chemical and impact resistance.
- Six heavy-duty leveling casters with integrated adjustable fixing feet for absolute stability and analytical grounding.
- Supports a static load capacity of up to 500 kg on the work surface.

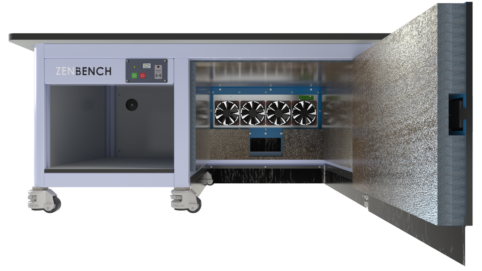

Soundproofing compartment
- Dedicated right-side enclosure for 1 analytical vacuum pump , fully lined with 50 mm thick premium acoustic insulation.
- Pump positioned directly at floor level to fully maximize internal vertical clearance.
- Heavy-duty front access door with an airtight perimeter seal for rapid pump inspection and clean, clean oil changes.
- Suppresses over 85% of perceived continuous ambient noise generated by active machinery in the laboratory.
Ventilation and feedthrough system
- 4 ultra-quiet exhaust fans with an extended operational lifespan of 150,000 hours , structurally integrated onto the rear panel for active thermal management.
- Optimized and segregated cable management: features 3 circular rear pass-throughs on the upper section for clean routing of vacuum hoses and lines, and 2 dedicated pass-throughs for general data connections.
- Integrated 12 V power supply customized for UK main networks (230 V / 50 Hz) equipped with a secure industrial connector and a UK Type G safety plug.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
Compatibility with leading manufacturers and models of analytical instrumentation
| Bruker | Perkin | |
|---|---|---|
| MS | Impact II | - |
