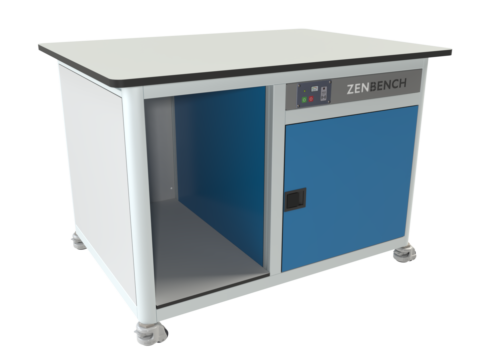

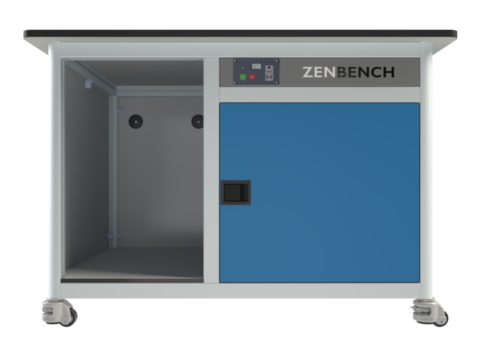

Laboratory bench
ZBENCH 120VP1
Description
The ZenBench ZBENCH 120VP1 laboratory bench is engineered to deliver maximum stability and safety in demanding scientific environments. Featuring a load capacity of up to 1,100 lbs (500 kg) and a highly chemical-resistant work surface, this unit ensures exceptional durability and reliability for daily laboratory operations.
Its integrated soundproof enclosure , specifically engineered to house chillers, gas generators, or vacuum pumps, reduces perceived noise by over 85% to significantly improve ambient workspace comfort. Additionally, the automated ventilation system features smart visual and audible alarms to actively prevent equipment overheating.
Equipped with four heavy-duty leveling casters , the bench seamlessly combines effortless mobility with rock-solid stability to meet dynamic laboratory layouts. It can also be customized with optional accessories including power strips, a TFT monitor arm, a CPU holder, and drawer units.
Features
Support
Up to 1,100 lbs (500 kg).
Soundproofing
Soundproof enclosure tailored for chillers, gas generators, or vacuum pumps. Reduces perceived noise by more than 85%.
Ventilation
Automated ventilation system driven by four ultra-quiet cooling fans.
Assembly
Mobile workbench equipped with heavy-duty leveling casters and integrated stabilization feet.
Materials
High-strength structural aluminum profile frame. 12 mm High-Pressure Laminate (HPL) side panels. 20 mm Fundermax Resistance chemical-resistant work surface.
Other features
Digital control panel with temperature display. Multi-stage audible and visual overheating alarms. Anti-vibration system utilizing specialized silentblock dampeners.
Technical specifications
- Mobile acoustic isolation bench optimized for high-end analytical instrumentation including MS, LC-MS, GC-MS, ICP-MS, and QTOF-TOF systems, featuring a high-durability aluminum profile frame.
- Enclosure panels constructed from 12 mm HPL and a 20 mm thick Fundermax Resistance worktop , both engineered for superior chemical resistance.
- Four heavy-duty leveling casters with integrated stabilization feet for absolute workspace rigidity.
- Supports a static weight capacity of up to 1,100 lbs (500 kg) .

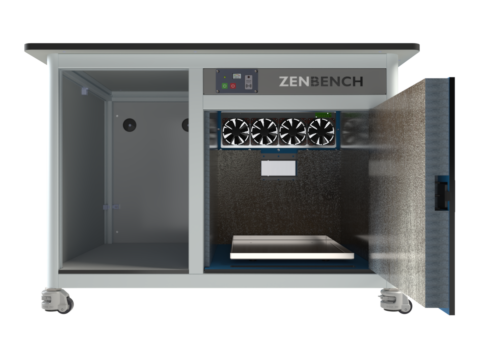

Soundproofing compartment
- Single-door access with a secure latch for streamlined equipment maintenance, routine inspections, and pump oil changes.
- Compartment lined with 50 mm thick high-grade acoustic insulation , engineered specifically to suppress noise from chillers, gas generators, and vacuum pumps. Lowers perceived noise levels by over 85%.
- Integrated anti-vibration system: a heavy-duty stainless steel tray mounted on silentblock isolation pads designed to absorb mechanical vibrations generated by the vacuum pump.

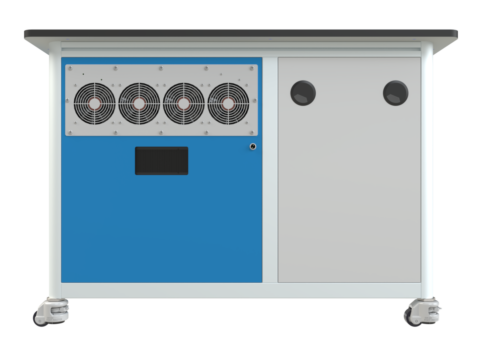

Ventilation and feedthrough system
- Four long-life, ultra-quiet cooling fans rated for 150,000 hours of continuous operation, designed for quick and tool-free replacement.
- Three feedthrough ports: one designed for vacuum lines and the power supply cable, and two destined for miscellaneous wiring.
- Integrated 12V power supply unit for universal grid connection (100–240V / 50–60 Hz ) with a secure locking connector.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
External dimensions
47" × 35" × 33" (W × D × H)
Internal compartment dimensions
21" × 26" × 24" (W × D × H)
Benchtop
20 mm thick Fundermax Resistance work surface.
Compatibility
Compatibility with leading manufacturers and models of analytical instrumentation
| Agilent | Bruker | Perkin | Sciex | Shimadzu | Thermo | Waters | |
|---|---|---|---|---|---|---|---|
| MS | 6150 SQ - 6470 TQ | Evoq Qube LC/TQ - Amazon Speed - Compact | - | QTRAP 4500 QTRAP 5500 X500R TQ 4500 - TQ 5500 |
LCMS 2020 - LCMS 2050 LCMS 8040 - LC 8045 LCMS 8050 LCMS 8060 - LCMS 8060 NX |
Q Exactive Orbitrap - Exactive series Exploris 120/240 - Eploris MX ISQ EC/EM TSQ Quantis - TSQ Quantis + TSQ Fortis - TSQ Fortis + |
Bioaccord - SQ Detector 2 TQD - Xevo TQ-S micro |
| GC-MS |
5973 inert MSD - 5975 MSD series 5977A/B MSD - 5977A/C/D 7010B/C | Evoq GC-TQ Speed |
GC/MS 2400 - Clarus SQ 8T GC-MS | - |
GCMS TQ 8040 NX GCMS TQ 8050 - GCMS 8050NX GCMS 2020 NX |
ISQ 7610 - TSQ 9610 TSQ 8000 - TSQ 9000 | XEVO TQ-GC |
| ICP-MS | - | - | - | X500 B - X500R |
ICPE-9800 series ICP-MS 2040/2050 series ICP-MS2030 | - | - |
| LC-MS | - | - | - | - | LCMS 2050 + HPLC |
TSQ Fortis - TSQ Fortis+ ISQ EC/EM Orbitrap Exploris MX |
Xevo TQ - S micro Bioaccord |

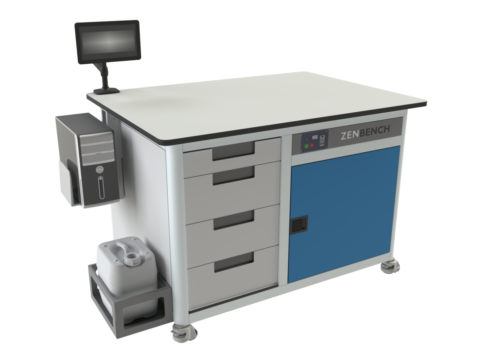

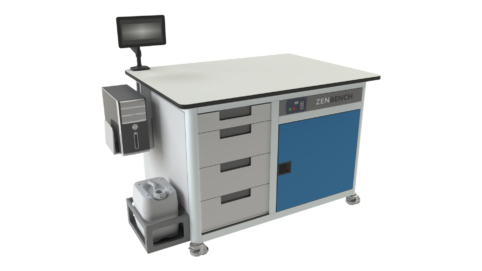

Accessories
Complement your laboratory bench to enhance its functionality
Shelves
Drawer unit
Power Strip
CPU Holder
Request a quote for the product ZBENCH 120VP1
Our technical team advises you every step of the way to help you choose the bench that best suits your laboratory.
