Laboratory bench
ZBENCH 120VP1XL-F
Description
The ZenBench ZBENCH 120VP1XL-F laboratory bench is engineered to optimize the footprint of your mass spectrometry (MS) equipment, seamlessly merging superior acoustic isolation, structural stability, and technical safety. Constructed with a high-strength aluminum profile frame and a highly chemical-resistant work surface, this unit supports static loads of up to 1,100 lbs (500 kg) with absolute security.
Its lower enclosure features an advanced technical insulation system that drastically dampens roughing pump and motor noise, achieving a reduction of up to 20 dBA. Engineered with a floorless, open-base architecture, the bench is specifically designed to house heavy-duty vacuum pumps and chillers directly on the laboratory floor. This floorless configuration completely eliminates the transmission of mechanical vibrations to the upper benchtop, safeguarding high-precision analytical data. Furthermore, it incorporates intelligent automated ventilation and a multi-stage thermal protection system with audible and LED indicators to actively mitigate overheating risks.
Equipped with five adjustable heavy-duty leveling casters, the workbench guarantees an ultra-rigid anchor to preserve the precision and reproducibility of your analytical workflows. It features 100% hardware compatibility with premium, high-end systems from leading instrumentation manufacturers such as Bruker, and Waters.
Features
Support
Up to 1,100 lbs (500 kg).
Soundproofing
Floorless acoustic compartment tailored for 1 vacuum pump or chiller. Reduces perceived noise by more than 85% (up to 20 dBA attenuation).
Ventilation
Integrated high-efficiency automated extraction system equipped with ultra-quiet fans.
Assembly
Mobile workbench equipped with heavy-duty leveling casters and integrated stabilization feet.
Materials
High-strength structural aluminum profile frame. 12 mm High-Pressure Laminate (HPL) side panels. 20 mm Fundermax Resistance chemical-resistant work surface.
Other features
Integrated control panel with temperature display. Multi-stage audible and visual overheating alarms.
Technical specifications
- Mobile soundproofing bench for MS with a high-strength structural aluminum profile frame.
- 12 mm HPL panels for the enclosure and 20 mm Fundermax Resistance for the work surface, both offering superior chemical resistance.
- Five heavy-duty leveling casters with integrated locking stabilizer feet for enhanced stability.
- Supports a static and dynamic weight of up to 500 kg (1,100 lbs).

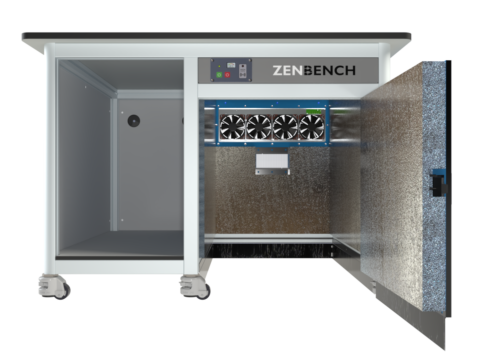

Soundproofing compartment
- Floorless Design (Open Base): Specifically engineered for the effortless installation of heavy vacuum pumps and chillers, allowing them to rest directly on the facility floor. This independent architecture completely isolates mechanical vibrations from the work surface. Features a specialized black bottom bristle brush to optimize acoustic containment while maintaining full unit mobility.
- Ergonomic Maintenance Access: The front door features a safety latch, allowing users to fully open the compartment and slide heavy equipment out at floor level without any manual lifting. This simplifies pump oil changes, filter maintenance, and chiller adjustments.
- Acoustic Insulation: Enclosure walls and door are fully lined with a 50 mm thick, multi-layer high-density textured acoustic insulation composite engineered for maximum motor, compressor, and vacuum pump soundproofing, reducing perceived noise by over 85% (up to 20 dBA attenuation).
Ventilation and feedthrough system

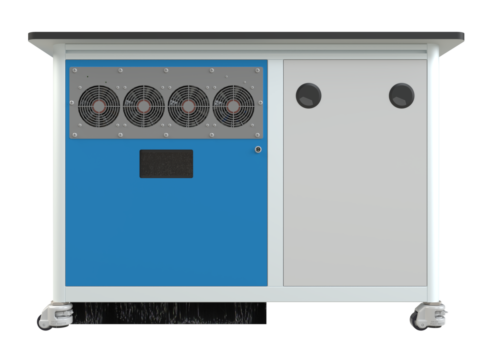

- Rear Ventilation and Extraction System: Equipped with four long-life, ultra-quiet cooling fans (rated at 150,000 hours) mounted onto a fully removable service panel at the rear of the bench. This modular pull-out design provides immediate access, streamlining technical maintenance and allowing for rapid fan replacement.
- Utility Ports: Three technical utility pass-through ports: one oversized port designed specifically for vacuum hoses and main power lines, and two circular ports lined with flexible rubber gaskets for auxiliary cable routing.
- Electrical Output: 12 V – 5 A power supply for direct connection to 230 V / 50 Hz mains, equipped with a secure locking connector.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
External dimensions
47" × 41" × 33" (W × D × H)
Internal compartment dimensions
21" × 32" × 30" (W × D × H)
Benchtop
Useful work area made of 20 mm Fundermax Resistance chemical-resistant composite.
Compatibility
Compatibility with leading manufacturers and models of analytical instrumentation
| Bruker | Waters | |
|---|---|---|
| MS | Evoq Dart TQ |
Xevo CDMS Xevo TQS G2-XS QTOF |
| LC-MS | - |
Xevo MRT Xevo G3 QTOF G2-XS QTOF |
| GC-MS | - | Xevo TQ Absolute with APGC PAL RSI |

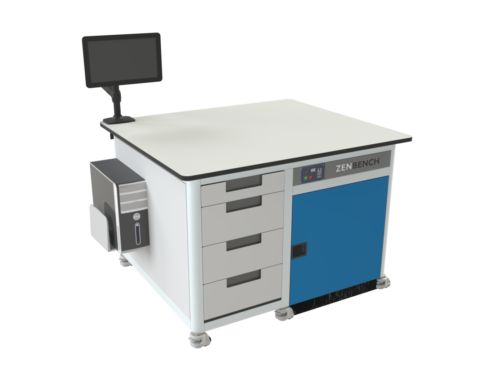

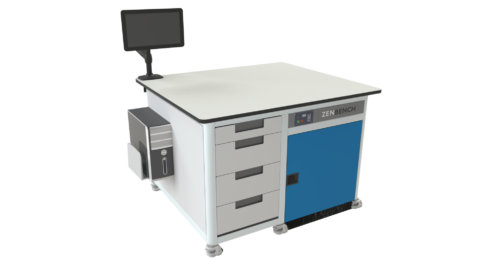

Accessories
Complement your laboratory bench to enhance its functionality
Shelves
Drawer unit
Power Strip
Monitor Arm
CPU Holder
Request a quote for the product ZBENCH 120VP1XL-F
Our technical team advises you every step of the way to help you choose the bench that best suits your laboratory.
