Laboratory bench
ZBench 150VP1
Description
The ZenBench ZBench 150VP1 laboratory bench maximizes the performance of your high-end mass spectrometry equipment (MS, LC-MS, GC-MS, ICP-MS) by seamlessly integrating advanced acoustic insulation, structural stability, and technical safety. Engineered with a heavy-duty, high-strength aluminum profile frame and 12 mm High-Pressure Laminate (HPL) panels , this unit safely supports static loads of up to 1,100 lbs (500 kg) with absolute security. Both the structural framework and the 20 mm Fundermax Resistance work surface deliver elite technical resistance against hazardous laboratory chemicals.
For premium noise control, the integrated enclosure includes a 50 mm thick multi-layer acoustic insulation composite that reduces ambient noise levels by 85% , combining a heavy-duty stainless steel tray mounted onto vibration-damping silent blocks . The intelligent lower layout features a hybrid design: a soundproofed enclosure custom-tailored to house 1 vacuum pump , paired with an adjacent open utility space ideal for housing external data modules or a technical workstation. Operational safety is completed with an active, automated extraction ventilation system and progressive thermal alarms (both audible and LED-indicated) to protect against overheating risks.
Its six heavy-duty adjustable leveling casters guarantee smooth mobility and a rock-solid, vibration-isolated foundation that preserves analytical precision and data reproducibility. The system features 100% hardware compatibility with premium analytical instruments from industry-leading manufacturers such as Agilent, Bruker, Sciex, Shimadzu, and Thermo Fisher .
Features
Technical specifications
- Mobile soundproofing bench for MS, LC-MS, GC-MS, and ICP-MS systems, constructed from high-strength structural aluminum profiles.
- 20 mm thick Fundermax Resistance work surface and 12 mm HPL side enclosure panels, both offering superior chemical resistance.
- Six heavy-duty leveling casters with integrated locking stabilizer feet to combine agile mobility with maximum mechanical stability.
- Supports a maximum static and dynamic weight of up to 500 kg (1,100 lbs).

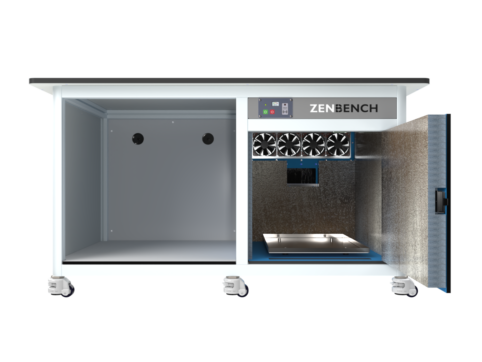

Soundproofing compartment
- Capacity: Acoustic compartment custom-tailored exclusively to house 1 vacuum pump .
- Ergonomic Access: Front compartment door featuring a safety quick-release latch, allowing users to easily open the enclosure for seamless vacuum pump oil changes and routine filter maintenance.
- Acoustic Insulation: Enclosure walls and door are fully lined with a 50 mm thick, multi-layer high-density textured acoustic insulation composite designed to mitigate heavy vacuum pump frequencies, reducing perceived noise by over 85%
- Active Anti-Vibration System: Features an integrated stainless steel internal tray mounted onto elastic silent blocks to absorb and completely isolate mechanical vibrations produced by the vacuum pump, preventing any energy transmission to the upper work surface.
Ventilation and feedthrough system

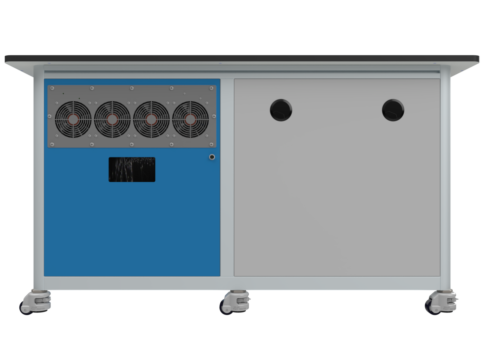

- Rear Modular Extractor Panel: Fully removable service panel at the rear of the bench equipped with 4 long-life, ultra-quiet cooling fans (rated at 150,000 hours) designed for rapid technical replacement.
- Three technical utility pass-through ports: one oversized port designed specifically for vacuum hoses and main power lines, and two circular ports for auxiliary cable routing.
- 12 V – 5 A power supply for direct connection to 230 V / 50 Hz mains, equipped with a secure locking connector.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
Compatibility with leading manufacturers and models of analytical instrumentation
| Agilent | Bruker | Sciex | Shimadzu | Thermo | |
|---|---|---|---|---|---|
| MS |
6410 TQ - 6420 TQ 6430 TQ - 6460 TQ | - | ZenoTOF 7600+ | - | - |
| LC-MS |
6150 SQ 500 Ion Trap 6470B TQ 6475 TQ |
Evoq Qube LC TQ Amazon SL Amazon Speed Compact |
QTRAP 3200 MD TQ 3500 - QTRAP 3500 TQ 4500 - QTRAP 4500 TQ 5000+ - QTRAP 5000+ | Shim-pack MC Series |
Orbitrap Exploris 120 / 240 Q Exactive Orbitrap Exactive Series - TSQ Quantis LCQ Flip Ion Trap LTQ XL - LTQ Velos |
| GC-MS |
7010 D 240 Ion Trap | - | - | - | ISQ 7610 (triplus) |
| ICP-MS |
7850 ICP-MS + SPS4 7900 ICP-MS + SPS4 | - | - | - | - |

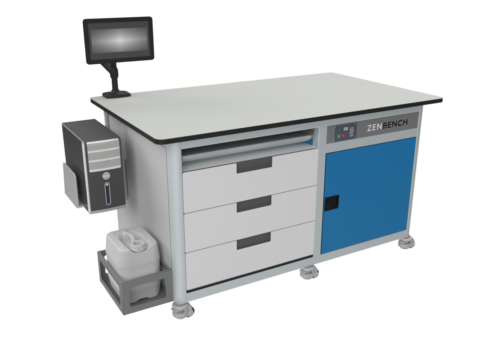

Complement your laboratory bench to enhance its functionality
