Laboratory bench
ZBENCH 190VP1
Description
The ZenBench ZBENCH 190VP1 laboratory bench delivers maximum stability, acoustic insulation, and heavy-duty protection for high-end analytical environments. Engineered with a high-strength aluminum profile frame, it supports a static load of up to 500 kg on a premium, highly chemical-resistant work surface.
This workstation optimizes analytical workflows by integrating a high-capacity three-drawer module, an ergonomic external CPU holder, and a heavy-duty articulated monitor arm (TFT). The lower layout features an open, dual-compartment design on the left and center, serving as a dedicated, uncompromised zone for safe chemical waste carboys management and general storage. Conversely, the right compartment serves as the primary soundproof enclosure, engineered exclusively with 50 mm thick high-density acoustic insulation to deliver over an 85% reduction in perceived ambient noise from the vacuum pump. This technical housing integrates a front-mounted digital climate control panel, automated forced ventilation via four high-airflow horizontal fans, and a stainless steel anti-vibration tray equipped with mechanical silentblocks.
Outfitted with six heavy-duty leveling casters featuring integrated retractable rubber feet, each individually adjustable, the bench combines effortless mobility during setup with a rigid, absolute floor anchoring during technical operation.
Features
Technical specifications
- Mobile soundproof laboratory workstation custom-engineered for MS, LC-MS, GC-MS, ICP-MS, and QTOF-TOF configurations.
- 12 mm structural HPL panels and 20 mm Fundermax Resistance benchtop with ultra-high chemical and impact resistance.
- Six heavy-duty leveling casters with integrated adjustable stabilizing feet for absolute analytical grounding.
- Supports a static load capacity of up to 500 kg on the work surface.

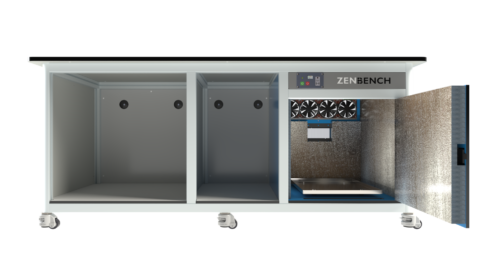

Soundproofing compartment
- Dedicated right-side housing for 1 analytical vacuum pump, fully lined with 50 mm thick premium acoustic insulation.
- Heavy-duty front access door with airtight seal for rapid pump maintenance and oil changes.
-
Suppresses over 85% of perceived noise generated by active lab machinery.
-
Integrated anti-vibration system featuring a stainless steel tray mounted on shock-absorbing silentblocks.
Ventilation and feedthrough system

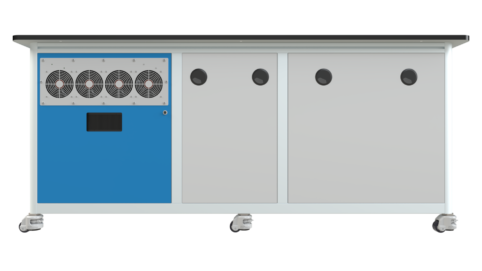

- 4 ultra-quiet exhaust fans with an extended operational lifespan of 150,000 hours, structurally integrated onto a rear aluminum panel.
-
Optimized cable management: features 4 circular rear pass-throughs on the upper section for analytical lines and 1 dedicated lower rectangular feedthrough optimized for vacuum hoses and main power cables.Integrated 12 V power supply for international mains networks (100–240 V / 50–60 Hz) equipped with a secure industrial connector.
-
Integrated 12 V power supply for UK mains networks (230 V / 50 Hz) equipped with a secure industrial connector.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
Compatibility with leading manufacturers and models of analytical instrumentation
| Agilent | Bruker | Perkin | Sciex | Shimadzu | Thermo | Waters | |
|---|---|---|---|---|---|---|---|
| LC-MS |
TQ 6410 - TQ 6420 TQ 6430 - TQ 6460 Infinity Lab Pro IQ Ultivo TQ SQ 6150 TQ 6470 - TQ 6475 |
Evoq Qube LC-TQ Amazon, S.L. Amazon Speed ETD Amazon Speed Toxtyper Compact |
HS 2400 Headspace autosampler |
TQ/QTRAP 3500 TQ/QTRAP 4500 TQ/QTRAP 5000 -TQ/QTRAP 5500+ 3200 MD QTRAP |
Nexera MX DPIMS 8060 LCMS8065 XE Nexera Micros Shim-pack MC series |
TSQ Quantum XLS Orbitrap Ascent Tribid MS Orbitrap Eclipse Tribid MS |
- |
| GC-MS |
5977 C 7000 A/C/D/E 7010 B/C/D |
Evoq Qube GC TQ Evoq Scion GC-TQ Evoq GC-TQ speed + (8500GC+8400 Pro autosampler) |
GC 2400 Platform | - |
GCMS TQ 8040NX GCMS TQ 8050 - GCMS TQ 8050NS GCSM 2020NX |
ISQ 7610 - ISQ 9610 TSQ 8000 - TSQ 9000 |
- |
| ICP-MS |
7850 IPC-MS + SPS4 7900 IPC-MS + SPS4 9500 IPC-MS + SPS4 8900 IPC-MS +(SPS4 o LC1260) |
- |
Nexion 300 Nexion 350 NexION 1000/2000 NexION 1100/2200 NexION 5000 |
- | - |
iCAP TQ + (ISC-65) iCAP RQ plus + (ISC-65) iCAP TQe + (ISC-65) iCAP Qnova + (ISC-65+PC) iCAP RQ + (ISC-65 + PC) |
- |
| QTOF/TOF |
EXD Cell for LC/Qtof Revident LC/Qtof Series 6500 Qtof 6224 TOF - 6230 TOF |
- | - |
LCMS QTOF X500B LCMS QTOF X500R |
- | - | - |
| MS | - | - | - | - |
LCMS 8040 - LCMS 8045 LCMS 8050 LCMS 8060 - LCMS S8060NX LCM 2050 (with SFC) |
Q Exactive Orbitrap Exactive Series TSQ Fortis - TSQ Fortis+ ISQ EC/EM SQ Orbitrap Exploris 120/240 Orbitrap Exploris MX |
Vion IMS QTOF |
