Laboratory bench
ZBENCH 190VP1XL
Description

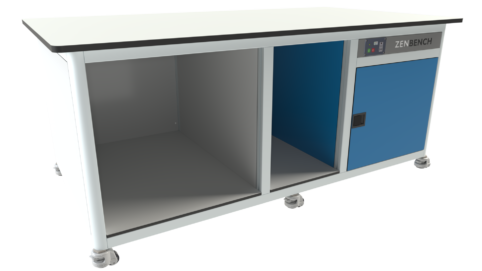

The model ZBENCH 190VP1XL is a high-performance mobile laboratory bench engineered specifically to mitigate critical noise and vibrations in high-throughput mass spectrometry analysis. Featuring a robust static load capacity of up to 500 kg, it combines a rigid aluminum frame with 12 mm High-Pressure Laminate (HPL) enclosures and a 20 mm Fundermax Resistance work surface, ensuring absolute chemical inertia. The bench is fully compatible with industry-leading analytical systems including LC-MS, GC-MS, and QTOF-TOF instruments from major manufacturers.

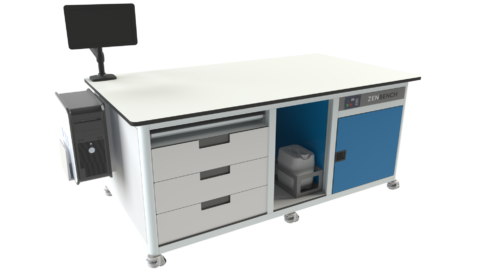

Its modular architecture optimizes laboratory space by integrating a soundproofed compartment that reduces vacuum pump noise by over 85%. To eliminate mechanical interference, it features an anti-vibration stainless steel tray equipped with silentblocks, a secure fluid waste module, and a three-drawer unit. Operational continuity and order are guaranteed through an automated thermal management system powered by four ultra-silent fans and a digital display with integrated overheating alarms. Furthermore, the assembly includes specialized, segregated cable routing channels, ergonomic CPU and monitor mounts to clear the workspace, and six mechanical leveling casters with integrated ratcheting pads for absolute stability, rigid anchoring, and proper grounding
Features
Technical specifications
- Mobile soundproofing bench for LC-MS with high-resistance aluminium profile structure.
- 12 mm HPL for the enclosure and 20 mm thick Fundermax Resistance for the work surface, both chemical-resistant.
- Six lifting castors with integrated locking feet for greater stability.
- Supports a weight of up to 500 kg.

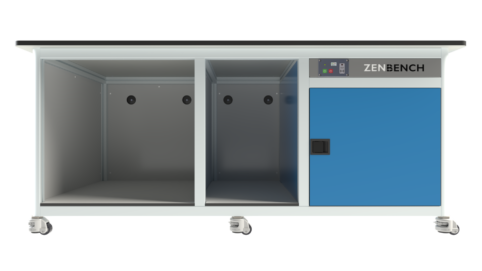

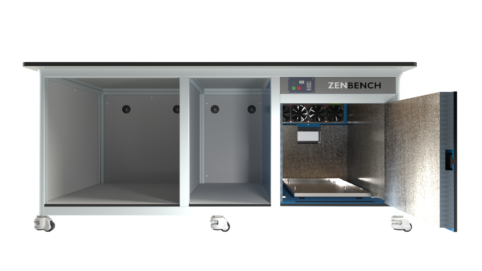

Soundproofing compartment
- Capacity: Soundproof compartment exclusively designed to accommodate 1 vacuum pump.
- Quick Access: Front door with latch/lock for easy access to the vacuum pump, ensuring convenient and hassle-free oil changes.
- Acoustic Insulation: Multilayer 50 mm thick soundproof lining that reduces perceived ambient noise by 85%.
- Anti-Vibration System: Stainless steel tray with integrated anti-vibration mounts (silentblocks) for complete absorption of pump-generated mechanical vibrations.
Ventilation and feedthrough system

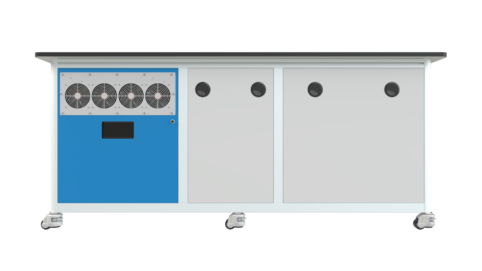

- Removable panel equipped with 4 ultra-quiet, long-life fans (150,000 hours) designed for easy technical replacement.
- Efficient, segregated cable management via five rear circular cable pass-throughs with black protective covers: four in the open bay area and one in the soundproof compartment for vacuum hoses and power supply.
- 12V – 5A power supply for connection to 230V/50Hz mains with safety connector.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
Compatibility with leading manufacturers and models of analytical instrumentation
| Agilent | Bruker | Thermo | Waters | |
|---|---|---|---|---|
| LC-MS | LC 1100/1200 + MS 6495C |
LC Ultimate - Vanquish / MS Orbitrap Exploris 120, 240 MS Quantis |
LC Acquity / MS Xevo TQ-XS MS Xevo Absolute | - |
