Laboratory bench
ZBENCH 190VP2

Description

The ZenBench ZBENCH 190VP2 laboratory bench is designed to provide maximum stability, soundproofing, and safety in demanding analytical environments. Built with a high-resistance aluminium profile structure and a chemical-resistant surface, it supports up to 500 kg.

It features a soundproof compartment for 2 vacuum pumps, capable of reducing perceived noise by more than 85%, improving comfort and efficiency in the laboratory. It incorporates an anti-vibration system, automatic ventilation with thermal control, and an acoustic and visual overheating alarm.

Thanks to its six lifting castors with integrated locking feet, it combines mobility and stability, making it an ideal solution for laboratories requiring performance, durability, and silent operation.

Features

Support

Up to 500 kg.

Soundproofing

Soundproof compartment for 2 vacuum pumps. Reduces perceived noise by more than 85%.

Ventilation

Automatic ventilation system with 6 ultra-quiet fans.

Assembly

Mobile bench with 6 lifting castors and integrated locking feet.

Materials

Aluminium profile structure. 13 mm HPL enclosure. 20 mm chemical-resistant Fundermax Resistance surface.

Other features

Control panel with temperature display. Acoustic and visual overheating alarm. Anti-vibration system with silentblocks.

Technical specifications

Mobile soundproofing bench for LC/MS with a high-strength aluminium profile structure.
13 mm HPL for the enclosure and 20 mm Fundermax Resistance for the work surface, both chemical-resistant.
Six lifting castors with integrated fixing feet for greater stability.
Supports a weight of up to 500 kg.

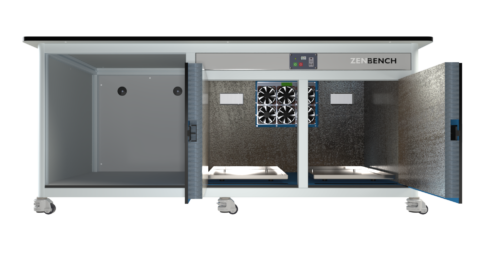

Soundproofing compartment

Compartment for 2 vacuum pumps.
Two locking doors for easy access to the vacuum pump for oil changes.
Compartment with 50 mm thick multi-layer acoustic insulation designed to soundproof motors, compressors, and vacuum pumps.
Reduces perceived noise by more than 85%.
Anti-vibration system using a stainless steel tray with silent blocks.

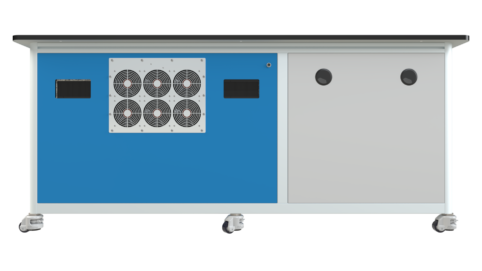

Ventilation and feedthrough system

6 long-life ultra-quiet fans (150,000 hours) that are easily replaceable.
Feedthroughs for vacuum tubes and power cables for the vacuum pumps.
12V power supply to connect to the 230V / 50Hz mains with safety connector.
