Laboratory bench
ZBench 190VP2XL (7500)
Description

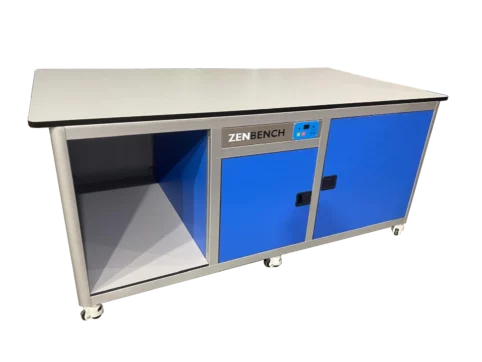

The ZBench 190-7500 laboratory bench by ZenBench is a professional solution specifically engineered and configured for integrating the SCIEX Triple Quad 7500 / 7500+ (LC-MS) mass spectrometry system. Its robust 20 mm Fundermax Resistance work surface easily supports the heaviest analytical modules, ensuring maximum stability and safety in the most demanding laboratory environments.
Its intelligent under-bench structure efficiently optimizes workspace to safely accommodate the system’s dual primary mechanical pump configuration, featuring the MS40 and MS120 models. Built entirely with high-strength aluminum profiles and a 12 mm HPL enclosure, the soundproofed compartment features 50 mm thick acoustic insulation that reduces the perceived ambient noise from these motors by more than 85%. To guarantee optimal safety and performance of the instrumentation, the assembly includes a stainless steel anti-vibration tray mounted on silent blocks, temperature-regulated automatic ventilation via 7 ultra-quiet fans, and a digital overheat control panel.
As an advanced extraction accessory, the bench features an attachable metal manifold on the rear ventilation plate. This component concentrates the hot airflow into a circular outlet, allowing heat to be channeled and exhausted directly out of the laboratory using flexible ducting.
The bench is complemented by integrated ergonomic accessories that completely clear the usable work surface. Key features include suspended CPU holders and articulated TFT monitor arms. Additionally, thanks to its six levelling casters with integrated lockdown feet, the system combines agile mobility with absolute stability for high-performance laboratories.
Features
Technical specifications
- Specialized Design: Soundproofed mobile bench optimized for LC-MS systems, featuring a high-strength aluminum profile structural frame.
- Robust Panels: Outer enclosure and work surface manufactured from high-durability, chemical-resistant HPL panels.
- Mobility and Anchoring: Equipped with six levelling casters featuring integrated level-adjustment and lockdown feet for absolute stability.
- Structural Capacity: Surface and structure engineered to safely support a static load of up to 500 kg.
Soundproofing compartment
- Dual Capacity: Compartment optimized to house up to 2 vacuum pumps (MS40 and MS120).
- Streamlined Maintenance: Twin front doors with latch systems for quick and convenient access during oil changes.
- Acoustic Insulation: 50 mm thick multi-layer insulation engineered to mitigate noise from motors, compressors, and pumps.
- Active Soundproofing: Over 85% reduction in perceived ambient laboratory noise.
- Structural Dampening: Stainless steel internal tray seated on high-absorption silent blocks to completely isolate vibrations.
Ventilation and feedthrough system

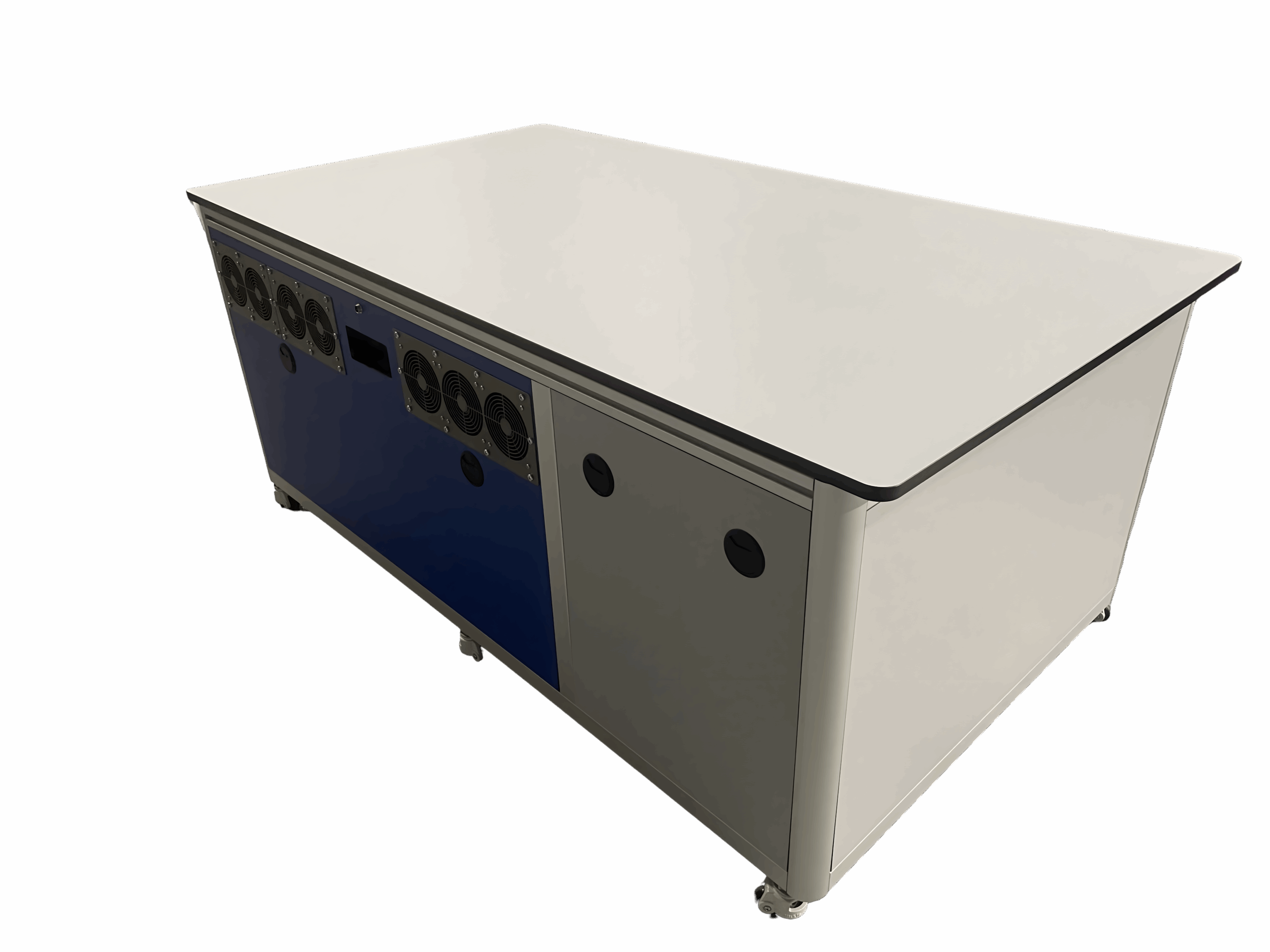

- Smart Ventilation: 7 long-life (150,000 hours), easily replaceable ultra-quiet fans, automatically managed by temperature sensors and the digital control panel.
- Advanced Extraction: Rear metal manifold for centralizing and exhausting thermal output via external flexible ducting.
- Technical Feedthroughs: Aligned and optimized cable and tube ports for the vacuum lines and power hoses of the MS40 and MS120 models.
- Power Supply: 12V – 5A power supply for connection to 230V/50Hz mains with safety connector.
Control panel with temperature display
- On button (green) and off button (red).
- Fans active from 20 °C. They reach maximum speed at 35 °C.
- Progressive optical and acoustic alarm in 3 levels: 56 °C, 61 °C and 70 °C.
- Backup battery to keep the alarm active without power.
Dimensions
Compatibility with leading manufacturers and models of analytical instrumentation
| Sciex | |
|---|---|
| LC-MS | 7500+ |
