Laboratory bench
ZBENCH TIMSMETABO
Description

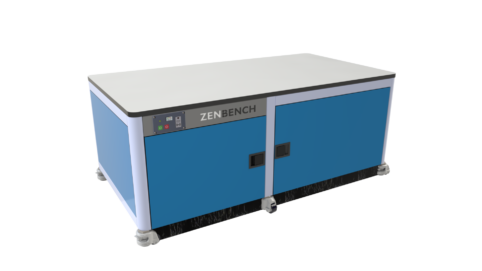

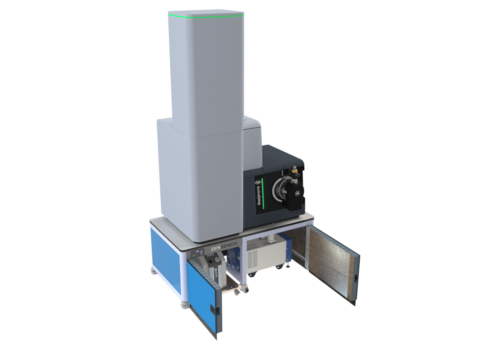

The ZenBench ZBENCH TIMSMETABO laboratory bench is designed for LC-MS equipment, offering maximum stability, soundproofing, and safety in demanding analytical environments. Built with a high-strength aluminium profile frame and a chemical-resistant surface, it supports up to 500 kg.
Its soundproof compartment for 1 vacuum pump reduces more than 85% of perceived noise, improving comfort in the laboratory. It includes an anti-vibration system, automatic ventilation with audible and visual alarm, as well as six lifting castors with fixing feet to combine mobility and stability.
It is the ideal solution for laboratories seeking performance, durability, and a quiet working environment.
Features
Support
Up to 500 kg.
Soundproofing
Soundproof compartment for 1 vacuum pump. Reduces perceived noise by more than 85%.
Ventilation
Automatic ventilation system with 4 ultra-quiet fans.
Assembly
Mobile bench with 6 lifting castors and integrated locking feet.
Materials
Aluminium profile frame. 12 mm HPL enclosure. 20 mm chemical-resistant Fundermax Resistance worktop.
Other features
Control panel with temperature display. Acoustic and visual overheating alarm. Anti-vibration system with silentblocks.
Technical specifications
- Mobile soundproofing bench for GC/LC-MS with a high-strength aluminium profile structure.
- 12 mm HPL for the enclosure and 20 mm-thick Fundermax Resistance for the work surface.
- Six lifting castors with integrated locking feet for greater stability.
- Supports a weight of up to 500 kg.
Soundproofing compartment
- Compartment for 1 vacuum pump.
- A door with a latch for easy access to the vacuum pump and for oil changes.
- 50 mm-thick acoustic insulation designed to soundproof motors, compressors and vacuum pumps.
- Reduces perceived noise by more than 85%.
- Anti-vibration system using a stainless steel tray with silent blocks.
Ventilation and feedthrough system

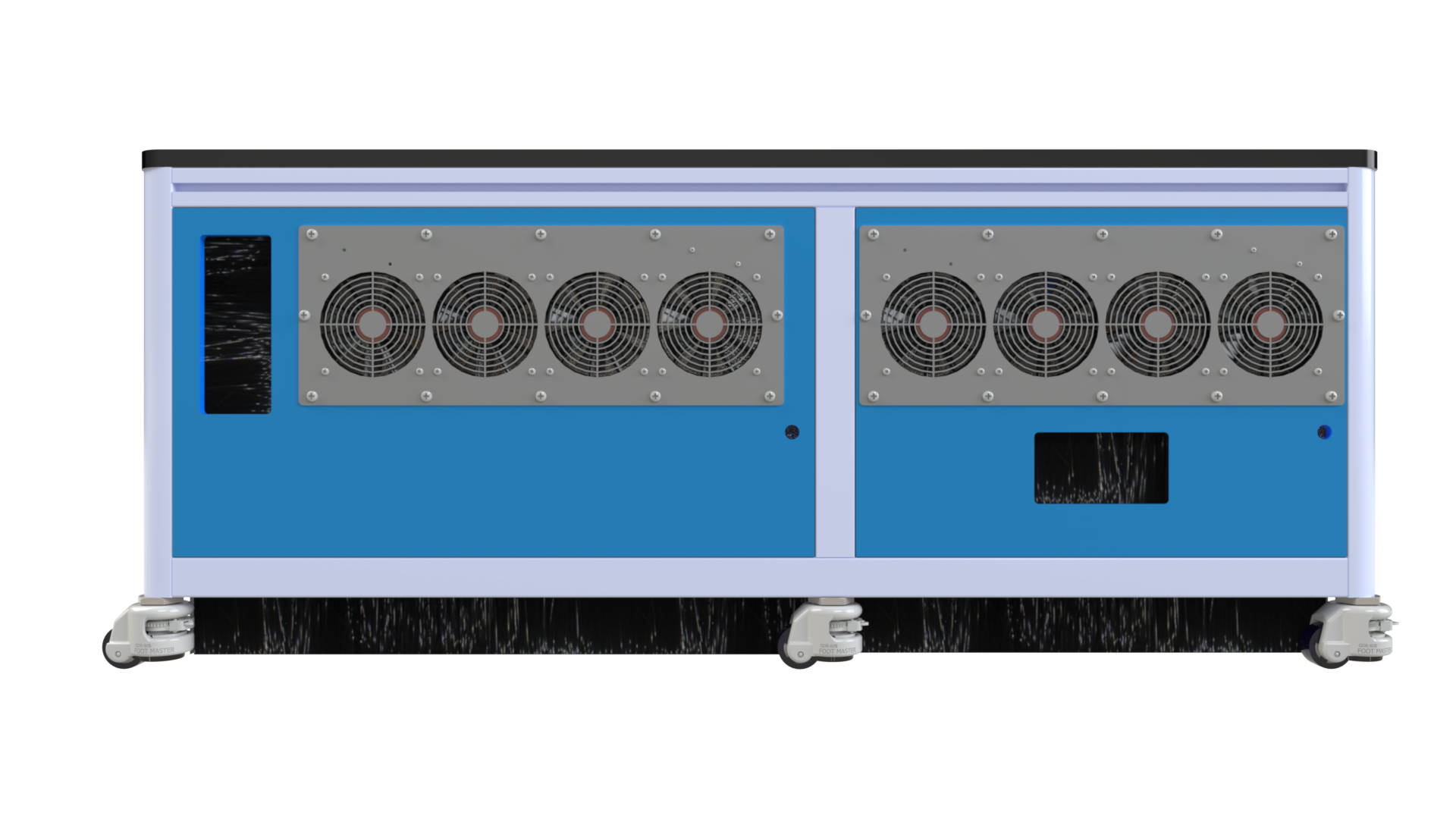

- 4 ultra-quiet fans with long lifespan (150,000 hours) and easily replaceable.
- Cable and vacuum hose pass-throughs for the pump.
- 12V power supply to connect to the 230V / 50Hz mains with safety connector.
Dimensions
External dimensions
55 × 30 × 23 in. (W × D × H)
Internal compartment dimensions
left: 21 × 24 × 20 in. | Right: 28 × 24 × 20 in. (W × D × H)
Benchtop
20 mm thick Fundermax Resistance work surface.
Compatibility
Compatibility with leading manufacturers and models of analytical instrumentation
| Bruker | |
|---|---|
| MS | timsMetabo |
Accessories
Complement your laboratory bench to enhance its functionality
Shelves
Drawer unit
Power strip
TFT support
CPU holder
Request a quote for the product ZBENCH TIMSMETABO
Our technical team advises you every step of the way to help you choose the bench that best suits your laboratory.
