Laboratory bench
ZBENCH 120VP2XL

Description

The ZBENCH 120VP2XL laboratory bench from ZenBench is designed for GC/LC-MS equipment requiring maximum stability and silence. Featuring a high-strength aluminium frame and a chemical-resistant surface, it supports up to 500 kg. Its soundproof compartment for 2 vacuum pumps reduces noise by up to 20 dBA and integrates an anti-vibration system, automatic ventilation, and an acoustic and LED alarm against overheating. Compatible with Thermo Fisher and Waters, it is the ideal solution for laboratories seeking precision, durability, and safety.

Features

Support

Up to 500 kg.

Soundproofing

Soundproof compartment for 2 vacuum pumps. Reduces noise by up to 20 dBA.

Ventilation

Automatic ventilation system.

Materials

Chemical-resistant worktop.

Other features

Audible alarm with LED indicator for overheating.

Technical specifications

Mobile soundproofing bench for GC/LC-MS with a high-strength aluminium profile frame.
13 mm HPL for the enclosure and 20 mm Fundermax Resistance for the work surface, both chemical-resistant.
Four lifting wheels with integrated locking feet for enhanced stability.

Soundproofing compartment

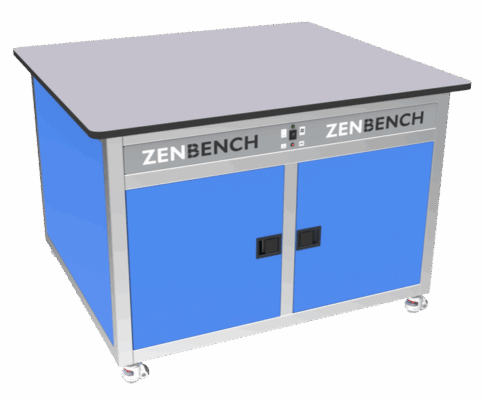

Two doors with locks for easy access to the vacuum pumps and for oil changes.

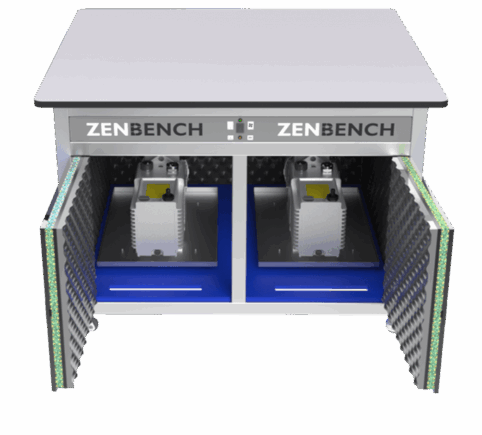

Compartment with multi-layer acoustic insulation, 50 mm thick, designed to soundproof motors, compressors, and vacuum pumps. Reduces perceived noise by over 85%.
Anti-vibration system: two stainless steel trays with silent blocks to absorb vibrations produced by the vacuum pumps.

Ventilation and feedthrough system

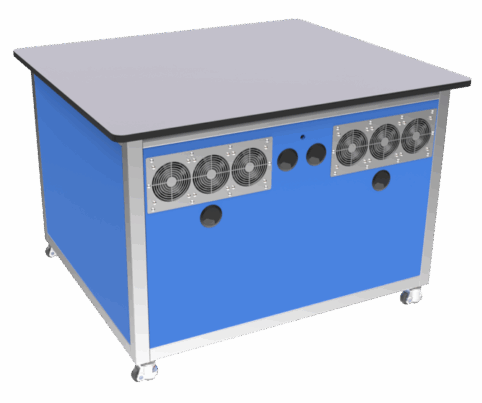

6 long-lasting (150,000 hours) and easily replaceable ultra-quiet fans.
4 feedthroughs for routing vacuum pump tubes.
12V-5A power supply for connection to the 230V/50Hz mains with a safety connector.
